How does it work?

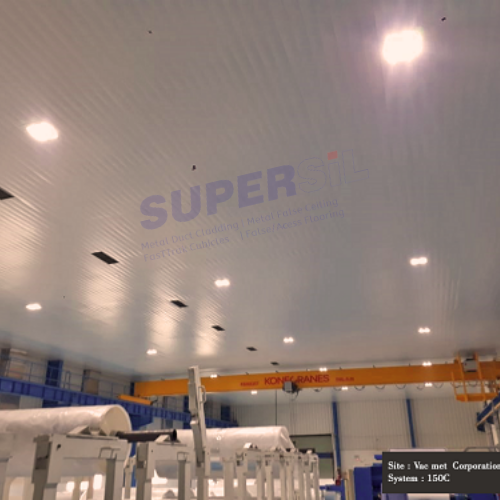

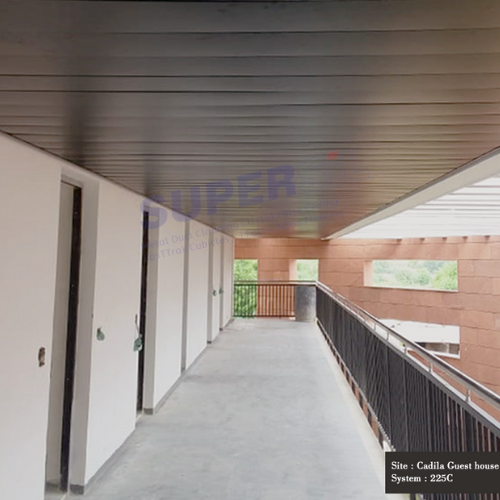

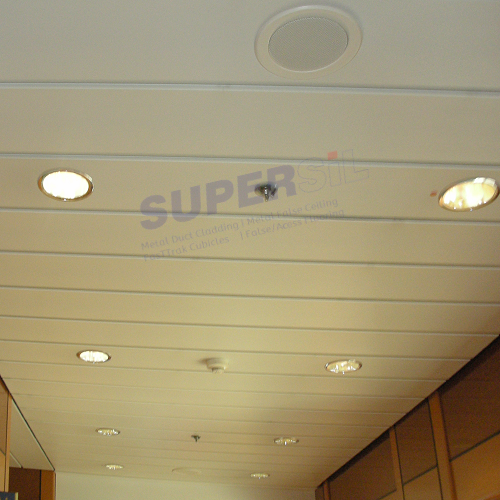

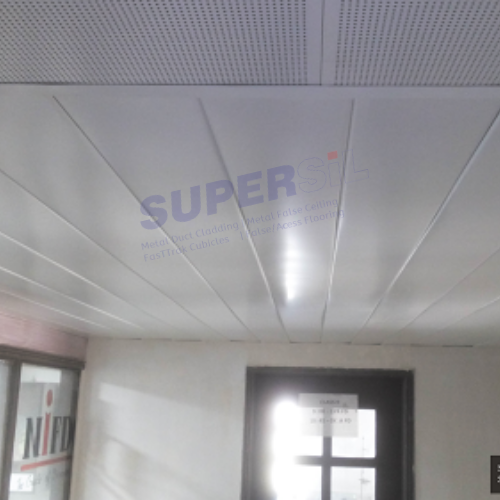

The Carrier is fixed with Grid Accessories at the required spacing and has a present location for Panel Sequence. Powder-coated 75/150/2225C Panels are then easily connected to the carrier. The system has been designed to maximize design flexibility while maintaining ease of installation.Supersil makes 75 / 150 / 225C bevel edge panels with a mini V grove made out of Alu. / GS of 75 mm wide x 15.5 mm deep x length up to 5mtrs. pre-coated with Alu. / GS Carrier of 32 mm wide x 39 mm deep x 0.6 mm thick with protruding ears to hold the panels in a module of 75, 150 & 225 mm center to center at a distance of a maximum 900mm to 1mtr.
