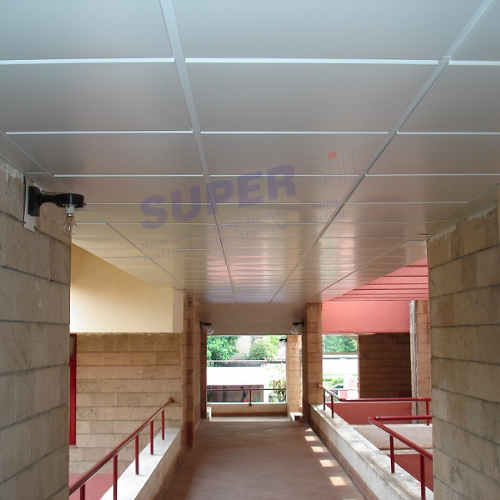

Supersil make Panels shall be fabricated from 0.50mm thick (TCT) Galvanized sheet and Powder Coated on the external surface shall have flange on all four sides to rest on the exposed grid system to give 600 mm * 600 mm centre to centre of “T”.
Panels can be either Plain for Flush look with “T” or it can be 10 mm Tegular below “T” to give a visible groove look.
Panel surface shall be 575mm * 575mm for 24mm T and shall be 585 mm * 585 mm for 15mm T
How does it work?

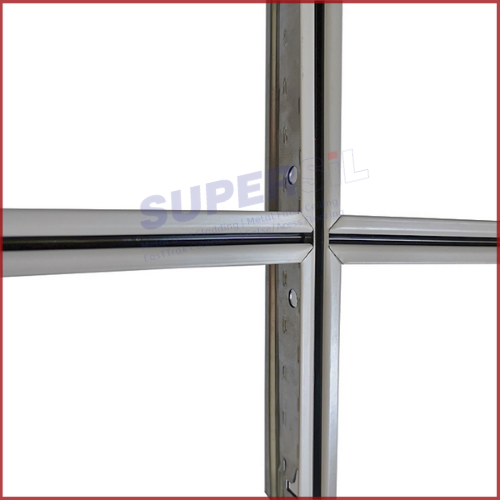

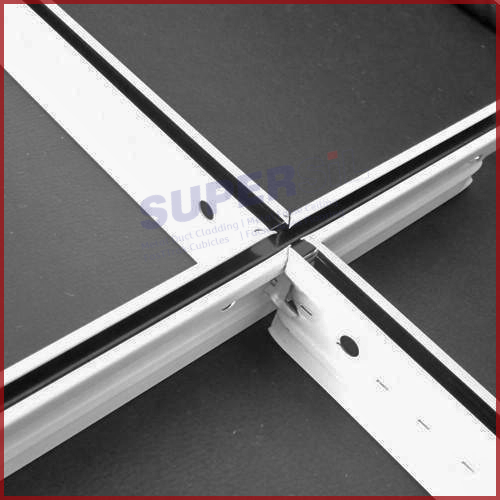

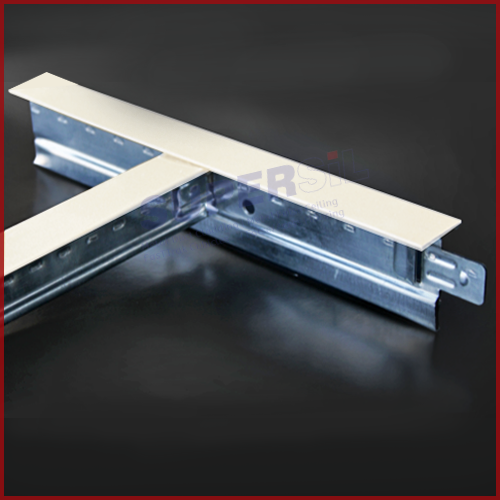

To comprise, Main runners spaced at 1200 mm centers securely fixed to the slab / Truss by means of Roll Plug and 4 mm dia GI rod at 1200 mm maximum centers and not more than 150mm from spliced joint. The last hangers at the end of each main runner should not be greater than 600 mm from the adjacent wall. 1200 mm Cross Tees & 600 mm Cross Tees to be interlocked between two main Tees to form a grid of 600 * 600 mm. Panels are then placed individually on the 600 * 600 mm exposed Grid framework created by Tees. GS Edge profile shall be fixed on the perimeter of walls and columns.Key Features
Stability of interlocking exposed gridEasy lift-up access to the void
Clean, modular ceiling
Easy Access
Light and grilles easily integrated
Compatible with industry Norms
Application
AirportCinema
Exhibition center
Hotel
Office area
Restaurant
Shopping mall
Supermarket

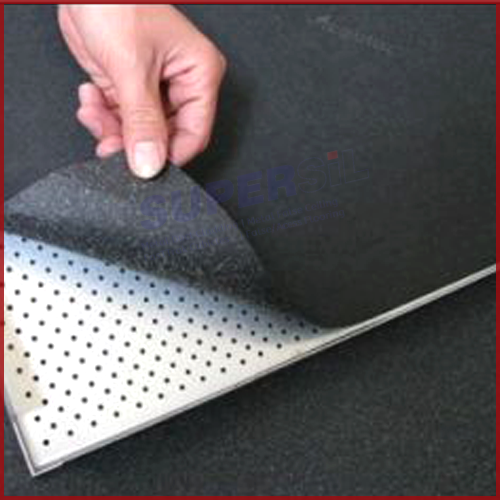

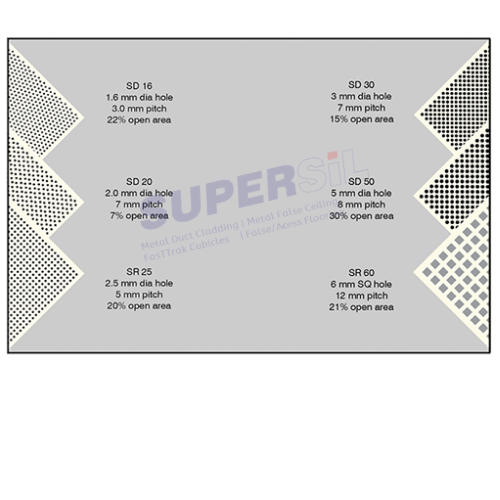

Perforation Details :
